SPECTROMETER

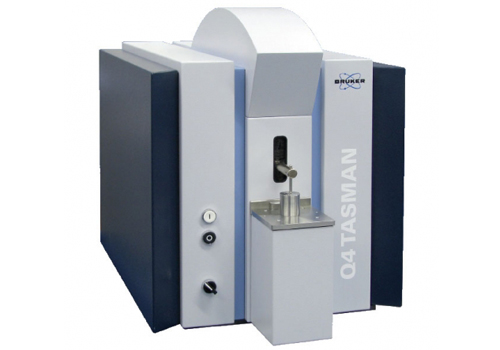

Q4 TASMAN Optical Emission Spectrometer from Bruker, Germany

---

Chemical / Elemental Analysis for engineering metals in
Iron base with Nitrogen ( Carbon Steels, Tool Steels, Cast Iron & Stainless Steels )
Aluminum Base
Titanium Base
Zinc Base
Copper Base
Nickel Base
Reliable for highly accurate analysis with higher repeatability

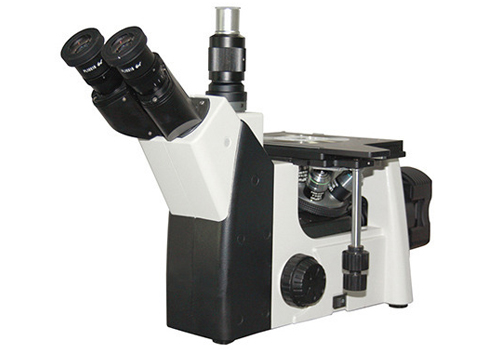

METALLURGICAL MICROSCOPE

---

50x to 1000x Optical Zoom and with Image capturing and Image analysis Software for Micro structure analysis of all metals including
Grain Size
Phase IdentiFication and Analysis
Porosity Analysis
SG Iron Analysis
Gray Cast Iron Analysis
Coating Thickness Measurement
Decarb Analysis
Case Depth Measurement
Inclusion Rating Analysis
Welding Joint Inspection

METALLURGICAL MICROSCOPE

MACROSCOPE

MACROSCOPE ANALYSIS

---

4x to 50x Optical Zoom and with Image capturing and Image analysis Software for
Macro Structure Analysis
Weld Analysis
Grain Flow Analysis

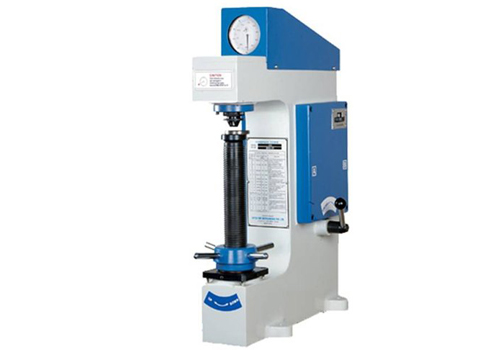

ROCKWELL HARDNESS TESTER

---

Rockwell A Scale Tests
Rockwell B Scale Tests
Rockwell C Scales Tests
Superficial Rockwell 15N Scale Tests
Superficial Rockwell 30N Scale Tests
Superficial Rockwell 45N Scale Tests

ROCKWELL HARDNESS TESTER

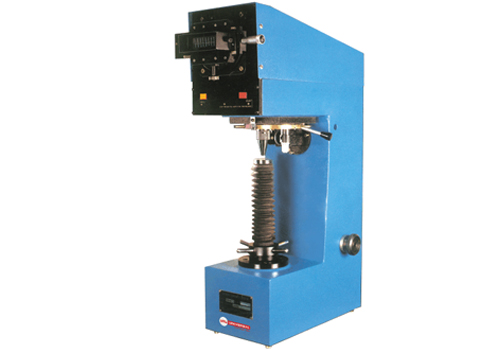

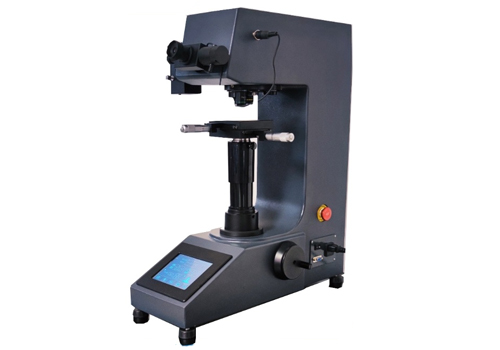

VICKERS HARDNESS TESTER

VICKERS HARDNESS TESTER

---

01 kg Load
05 kg Load
10 kg Load
20 kg Load
30 kg Load
50 kg Load

MICRO HARDNESS TESTER

---

Traverse Hardness Suruey
MicroVickers Hardness Tests
Knoop Hardness Tests
in 0.01, 0.025, 0.05, 0.1, 0.2, 0.3, 0.5 and 1 kg loads.

MICRO HARDNESS TESTER

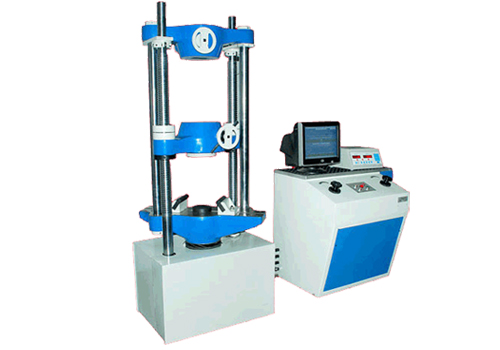

UTM - 400 KN

COMPUTERIZED UNIVERSAL TESTING MACHINE (UTM) - 400 KN

---

1. Tensile test
2. 0.2% Proof Stress
3. Yield Strength
4. Bend / Traverse Bend test
5. Shear Test
6. Compression Test
7. Axial and Wedge Tensile Test for Fasteners
8. Proof Load Test for Fasteners
9. Flaring, Flanging Drift expanding and Flattering Test for Tubes
For all Engineering metals including bars, rods, pipes, welded metals TMT bars and construction materials

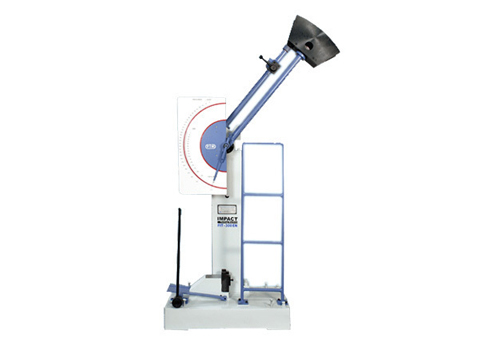

IMPACT TESTING MACHINE

---

Charpy (300 J)
lzod (160J)
with testing of samples at room Temperature and sub zero temperatures.

IMPACT TESTING MACHINE

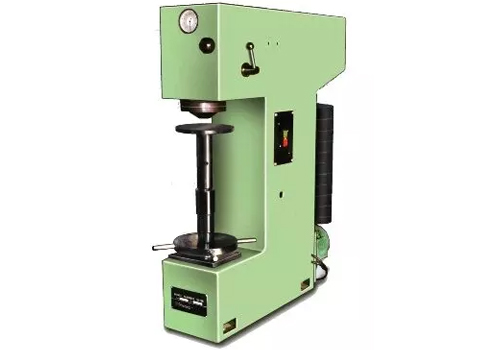

BRINELL HARDNESS TEST

BRINELL HARDNESS TEST

---

We do Brinell Hardness Tests with 10/3000, 10/1000, 10/500 and 5/750 kg loads.

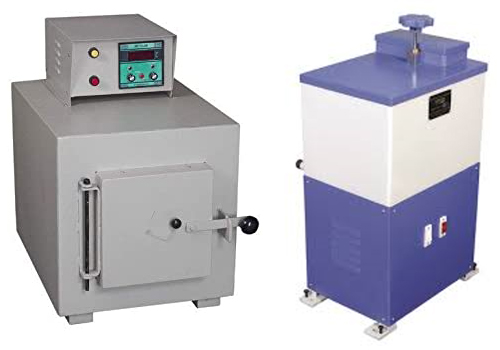

JOMINY END QUENCH TEST

---

Jominy End Quench Test is performed to evaluate the hardenability of a Carbon steel or alloyed steel material.
We can do the Jominy End Quench Test in IS 3848, ISO 642 and ASTM A255 standards.

JOMINY END QUENCH TEST

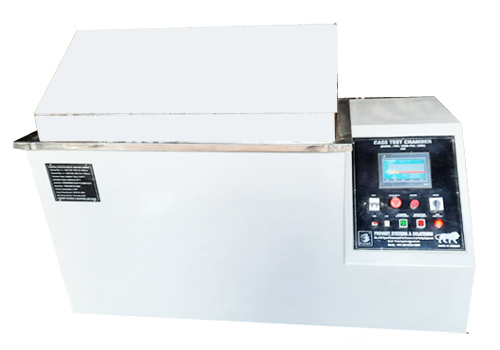

SALT SPRAY TEST

SALT SPRAY TEST

---

Neutral Salt Spray(NSS) test is meant for creating and testing in an artificially controlled atmosphere as per ASTM B117 and ISO 9227 for a specified period to estimate the relative corrosion resistance of the tested material such a Coated, Painted, Surface Treated Material and Raw Material.
We have PLC based Test Chamber to control the test atmosphere in a better way so that the results are accurate.

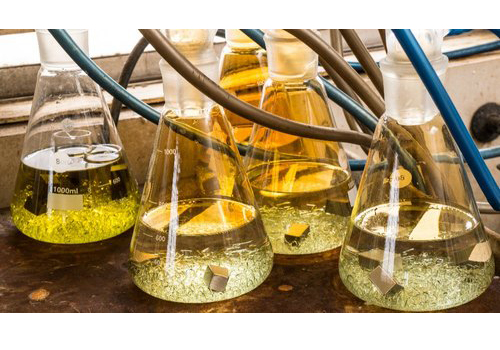

INTER GRANULAR CORROSION TEST

---

We undertake testing of susceptibility to inter granular corrosion of Austenitic Stainless Steel and duplex stainless steel as per ASTM A262 and ASTM A923 standards with
PRACTICE A — Oxalic Acid Etch Test for Preliminary screening with classification of etch structure.
PRACTICE B — Ferric Sulfate - Sulfuric Acid Test.
PRACTICE C — Nitric Acid Test.
PRACTICE E — Copper – Copper Sulfate – 16 % Sulfuric Acid Test.
&
PRACTICE F — Copper – Copper Sulfate – 50% Sulfuric Acid Test
for the evaluation of susceptibility to intergranular corrosion attack.

INTER GRANULAR CORROSION TEST
